Koncentrati piva i napitaka
Alfa Laval solutions for beer and beverage concentration remove water from beer, wine and cider after fermentation. Using a high-pressure, low-temperature reverse-osmosis process produces a high-quality concentrate. The beverage concentrate once rehydrated for onward sale has the same taste, aroma and alcohol content as the original product. A concentrate-based supply chain cuts packaging and shipping costs. It simplifies delivery logistics and reduces the environmental impact of distribution
Reduce your logistics costs and improve your sustainability profile with high-quality beer and beverage concentrates
- Reduced transport costs due to reduced shipping volumes with beer and beverage concentrates
- Lower overall supply chain costs due to reduced volumes of beer and beverage concentrate to package, store and transport
- Reduced storage requirements at the point of sale, such as bars and restaurants
- Upon rehydration of the concentrate, beer has the same taste, aroma and alcohol content as the original product
Get end-to-end solutions for your beverage concentration needs from Alfa Laval Beer and beverage concentration systems. These compact, reliable and energy-efficient solutions increase the efficiency of production, transportation, storage and draft dispensing at bulk packaging facilities and at the point of sale. This translates into higher productivity and yield, lower capital costs and more sustainable distribution.
Reduce bulk transportation costs by up to 80% while reducing the carbon footprint of your supply chain with Alfa Laval beer and beverage concentration systems.
Sensory example: freshly reconstituted
Comparison of fresh beer and reconstituted Revos beer concentrate
Procedure
- Fresh reconstituted lager was subjected to detailed descriptive sensory panel testing
- Scores were averaged over a large group of panellists
Results
Sensory panel tests reveal minimal to no differences between the control (fresh beer) and the trial (reconstituted beer)
Continuous concentration process, hygienic design
The Alfa Laval beer and beverage concentration systems feature proprietary filters with an ultra-tight membrane pore structure that allows water to pass easily through while retaining the alcohol, aromas, proteins and sugars in the concentrate. The membrane filters withstand high pressures – enabling higher concentration factors – and eliminate dead zones during Cleaning-in-Place (CIP). This translates into more uptime and higher standards of hygienic design with full membrane cleanability.
Space-saving, energy-saving systems
Choosing Alfa Laval’s reverse osmosis concentration technology results in a space-saving system with significantly lower capital costs and lower energy requirements than other technologies, such as freeze concentration or forward osmosis technologies. Moreover, Alfa Laval beer and beverage concentration systems do not require feed degassing, thereby preventing flavour loss.
Higher throughput, lower costs
Parameter optimization for each beverage maximizes throughput and significantly reduces product losses while retaining the product’s flavour profile.
Alfa Laval Revos applications
Bulk transport
Save €5–15 per hl on tanker transport
Re-draft system
Re-draft cellar: Allow bars to serve beer or other beverages from kegs of concentrate
Re-draft mobile: Provide a compact serving solution for seasonal venues
Princip rada
Alfa Laval beer and beverage concentration systems use a high-pressure, low-temperature reverse osmosis process. Operating at pressures above 120 bar (1,700 psi) achieves a higher concentration factor, thereby reducing shipping volumes and costs.
To achieve a high-quality concentrate, the product flows through a proprietary membrane filter. The membrane allows water to pass through it, due to pore size and polarity, but prevents the passage of proteins, sugars, aromas and alcohol. Water flows through the membrane, while the pressurized beverage becomes more concentrated as it flows along the membrane.
Pilot testiranje i iznajmljivanje sistema za koncentraciju piva
Pilot testiranje i iznajmljivanje sistema za koncentraciju piva
Testirajte Alfa Laval Revos sistem koncentracije i Re-draft sistem kako biste utvrdili da li ovi sistemi ispunjavaju vaše zahteve. Pošaljite do 10 hl svog proizvoda u inovacioni centar Alfa Laval Revos u Danskoj na testiranje na licu mesta i analizu performansi. Sistem Re-draft je dostupan za demonstraciju i testiranje za rehidrataciju proizvedenog koncentrata.
Alternativno, možete iznajmiti sistem Re-draft i vršiti probe rekonstitucije koncentrata piva u vašem objektu ili u komercijalnom okruženju.

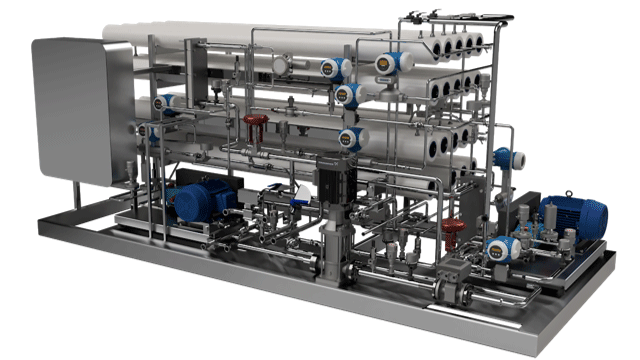

Revos concentration system 3D/VR
Take a 360-degree tour of our Revos concentration module in close-up. Explore the 3D model or combine your experience with VR hardware.
Česta pitanja vezana za Revos sistem koncentracije
Odgovore na najčešća pitanja o sistemu koncentracije piva Revos pronađite ovde.
Smanjenje emisije ugljenika - Saznajte više iz naše bele knjige
Kako pivare i postrojenja za proizvodnju pića mogu smanjiti svoj ugljenični otisak, a istovremeno učiniti operacije efikasnijim? Smanjenje direktnih i indirektnih emisija igra važnu ulogu – od kupovine sirovina, električne energije i proizvodnje do pakovanja, materijala i distribucije. Ova bela knjiga će se fokusirati na membransku filtraciju obrnute osmoze (RO) za koncentraciju piva i napitaka kao isplativ način za proizvođače da smanje ugljenični otisak svojih lanaca snabdevanja.
Usluge
Usluge za prehrambene sisteme
Usluge Alfa Laval za prehrambene sisteme pomažu u poboljšanju učinka vaših prehrambenih sistema maksimiziranjem učinka vaših procesa. Ovo vam omogućava:
- Da neprestano poboljšavate svoje poslovanje kako biste održali konkurentsku prednost
- Da se fokusirate na vreme rada bez kvarova, optimizaciju i dostupnost
- Da maksimalno povećate povraćaj ulaganja tokom životnog ciklusa vaših prehrambenih sistema
