Marine gasketed plate heat exchangers
Alfa Laval has been developing heat transfer technology for more than 80 years and has been active in the marine industry for over a century. Based on that vast wealth of experience, our engineers have designed gasketed plate heat exchangers that set entirely new standards – not only for reliability, but also for thermal performance and ease of service.
The marine industry’s most modern line of plate heat exchangers
- Superior reliability and energy efficiency
- Small size and footprint (CompactFrame™ design)
- Minimal fouling (CurveFlow™ plate distribution area)
- Easy installation and service (five-point alignment system)
- Optimized global supply chain and production for smallest environmental footprint
Suitable for any vessel, Alfa Laval gasketed plate heat exchangers excel in applications from general heating and cooling to heat recovery, condensation and evaporation. With their innovative features, they take reliability to an all-new level and save crews time and effort during maintenance. Above all, their design minimizes fouling and maximizes heat transfer capabilities, which ensures the highest possible energy efficiency.
Proizvodi

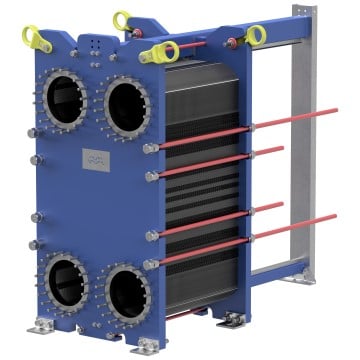

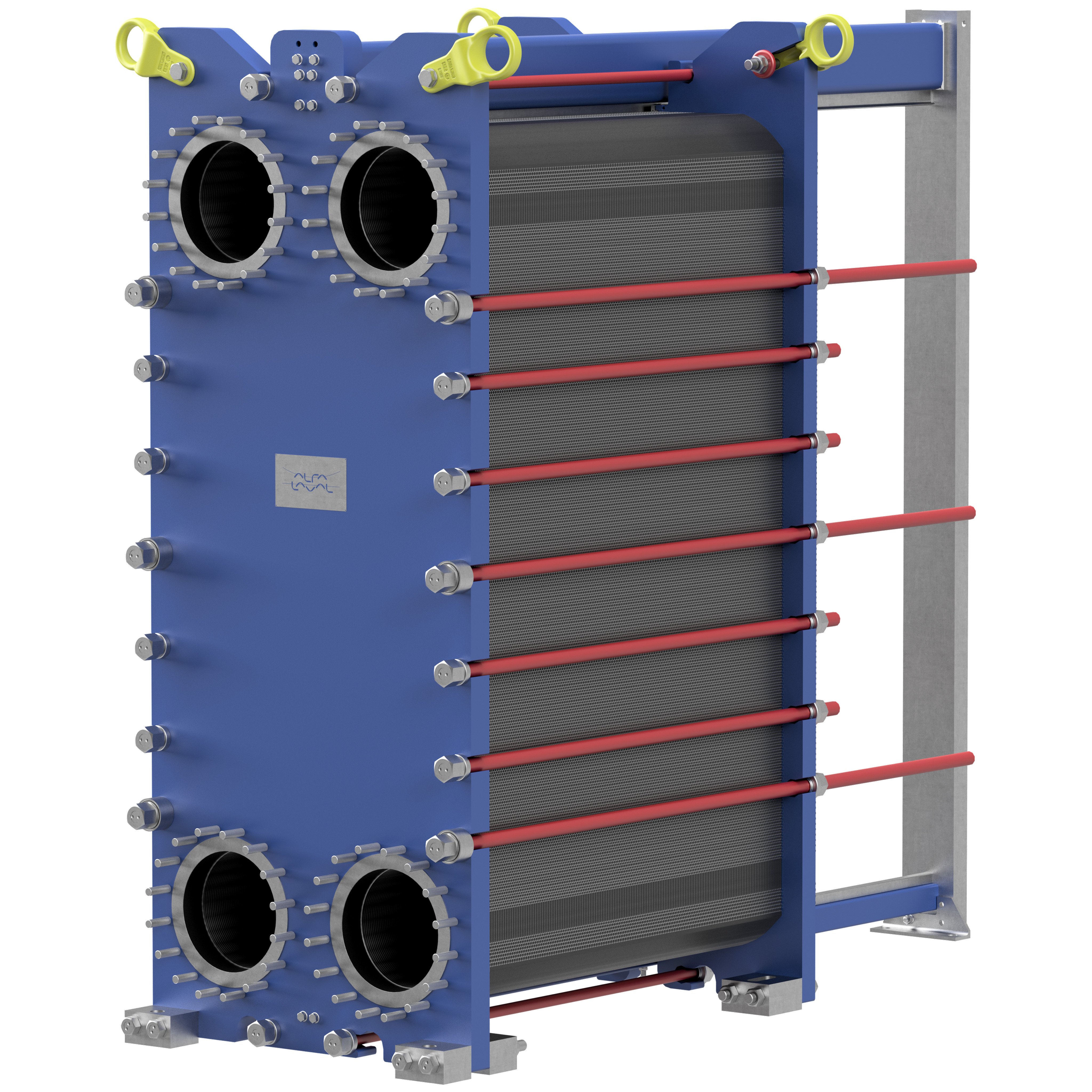

Gasketed plate heat exchangers for your vessel
Compact, reliable and energy-efficient, Alfa Laval gasketed plate heat exchangers are also safe and simple for crews to maintain. Our flexible marine line provides the right match for your needs today – with the possibility to adjust capacities later.
| T6 DN 60 |
T10 DN 100 |
T15 DN 150 |
T21 DN 200 |
T25 DN 250 |
T35 DN 350 |
|
|---|---|---|---|---|---|---|
| H (mm) | 890 | 1054 | 1833/1781 | 2082 | 2761 | 2875 |
| W (mm) | 320 | 470 | 610/650 | 755 | 913 | 1174 |
| Max flow rate (m3/h) | 60 | 160 | 370 | 650 | 1000 | 1970 |
| Capacity (kW) – water duty with LMTD 6 | 800 | 3 000 | 9 000 | 18 000 | 28 000 | 35 000 |
Princip rada
Područje prenosa toplote pločastog izmenjivača toplote sa zaptivačem se sastoji od niza valovitih ploča, sastavljenih između okvira i potisnih ploča kako bi se održao pritisak. Zaptivači deluju kao zaptivke između ploča. Tečnosti normalno prolaze protivstrujno kroz izmenjivač toplote. Ovo daje najefikasniji termički učinak i omogućava veoma blizak temperaturni pristup, odnosno temperaturnu razliku između izlaznog procesnog medijuma i medijuma koji ulazi u rad.
Alfa Laval izmenjivač toplote od ploča i okvira sa zaptivačem tečnost/tečnost
Features that make the difference
The Industrial line is equipped with features that turn this high-performance family into efficient and reliable workhorses that are easy to service and maintain over the whole product lifecycle.
For efficiency
By improving the efficiency of your heat exchanger, you can maximize production and minimize energy consumption to reduce your power bill and improve your environmental footprint.
See product animations below or get more information and listen to our technical experts.
CurveFlow™
područje distribucije
Poboljšava protok medija i minimizira rizik od prljanja.
OmegaPort™
necirkularne rupe za portove
Poboljšava protok medija i termičku efikasnost.
FlexFlow™
dizajn ploča
Poboljšava termičku efikasnost i optimizuje iskorišćenje pada pritiska.
For reliability
We are always looking to increase the reliability of every aspect of our gasketed plate heat exchangers.
We focus on durable designs based on robust materials and safe manufacturing processes.
See product animations below or get more information and listen to our technical experts.
PowerArc™
pločasti razdelnik
Poboljšava krutost ploče za duži vek trajanja.
Poravnanje u pet tačaka
Osigurava pouzdano pozicioniranje ploča i lako servisiranje za velike uređaje.
SteerLock™
poravnanje ploča
Osigurava pouzdano pozicioniranje ploče i lako servisiranje.
For serviceability
The simple opening and closing of the plate-and-frame design with gaskets enables hassle-free inspection and service. It also enables you to easily adapt the unit to new process conditions.
See product animations below or get more information and listen to our technical experts.
ClipGrip™
dodatak zaptivača
Obezbeđuje savršeno zaptivanje i održavanje bez problema.
Valjak sa T-trakom
Obezbeđuje donju jedinicu koja se lako servisira.
Kutije za ležajeve
Garantuje uređaj koja se lako otvara za lakše i efikasnije održavanje.
Kompaktan okvir
Olakšava održavanje i minimizira potrebu za servisnim područjem.
Services
Alfa Laval Marine Service
Worldwide and 24/7, Alfa Laval Marine Service is your path to greater uptime, optimized performance and true peace of mind. Our network is always on call, and our service offering brings reliability, efficiency and compliance throughout your equipment's lifetime.
